Blue and White
青花瓷

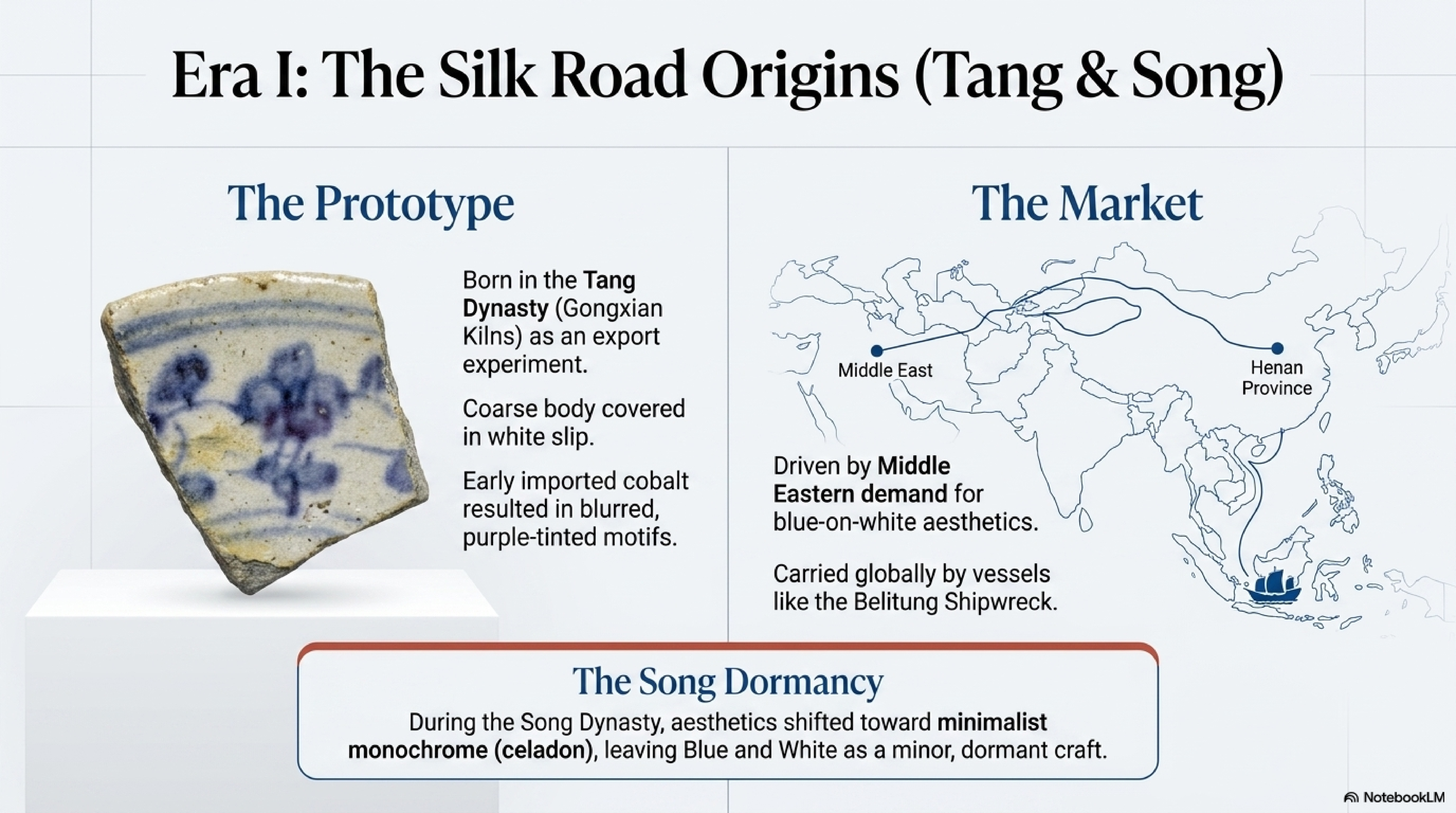

The developmental arc. Tang Gongyi kiln produced China's first cobalt-decorated white ware — primitive, Persian-influenced, technically raw. The Yuan breakthrough at Jingdezhen transformed this into the mature tradition: a dense white body (the new two-material formula of porcelain stone plus kaolin), imported Persian cobalt, and the full vocabulary of narrative and floral painting that defined blue and white for all subsequent centuries.

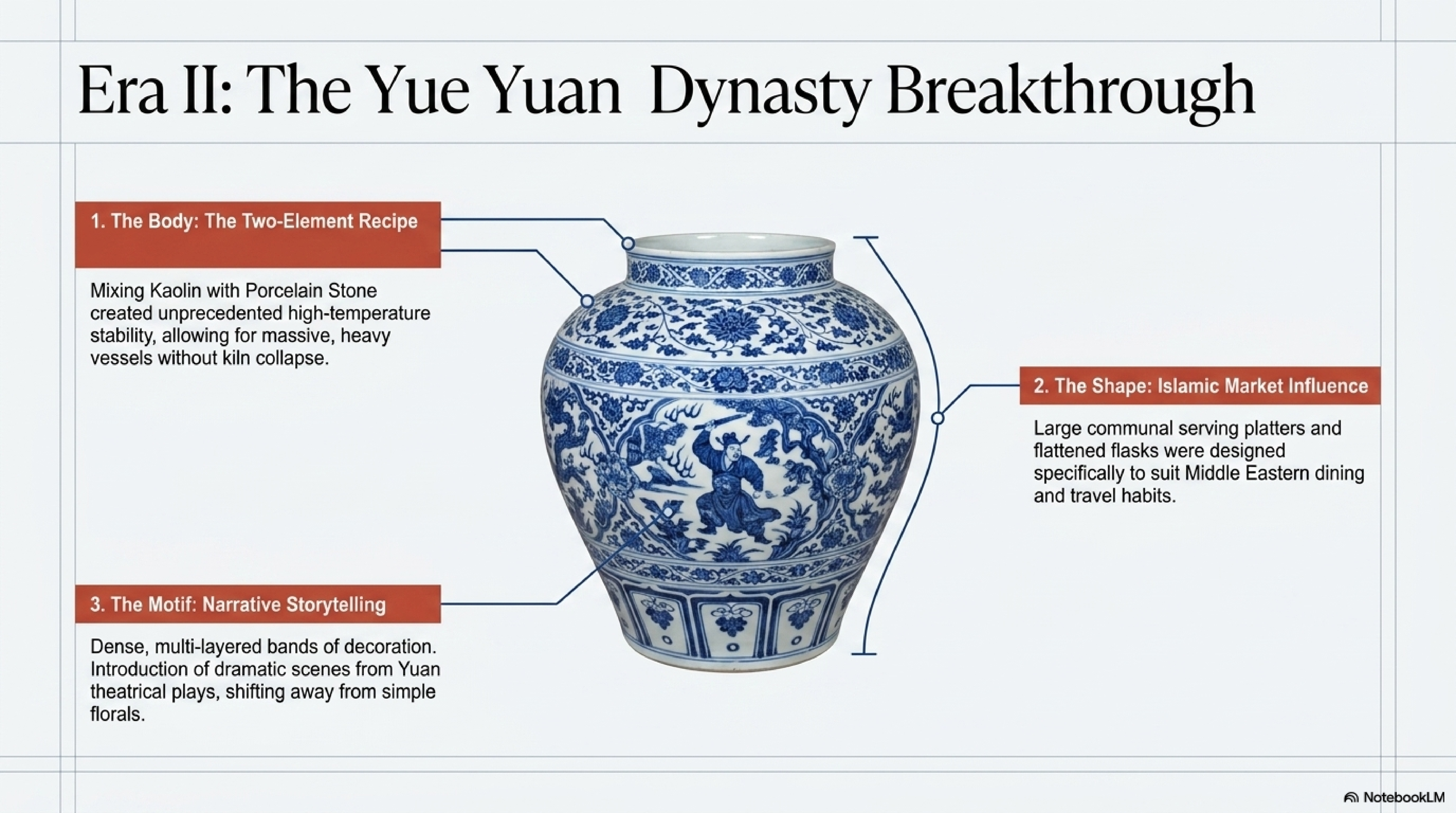

Yuan blue and white at its peak. The two-material body (porcelain stone + kaolin) enabled the large-scale forms — monumental jars, dishes, ewers — that defined Yuan production. The 苏麻离青 cobalt, sourced from Persia through the Mongol trade networks, produced a blue of exceptional depth and vibrancy. The narrative scenes (Yuan opera figures, dragons, phoenixes) were drawn with a confidence and freedom that court-controlled Ming production would never quite recapture.

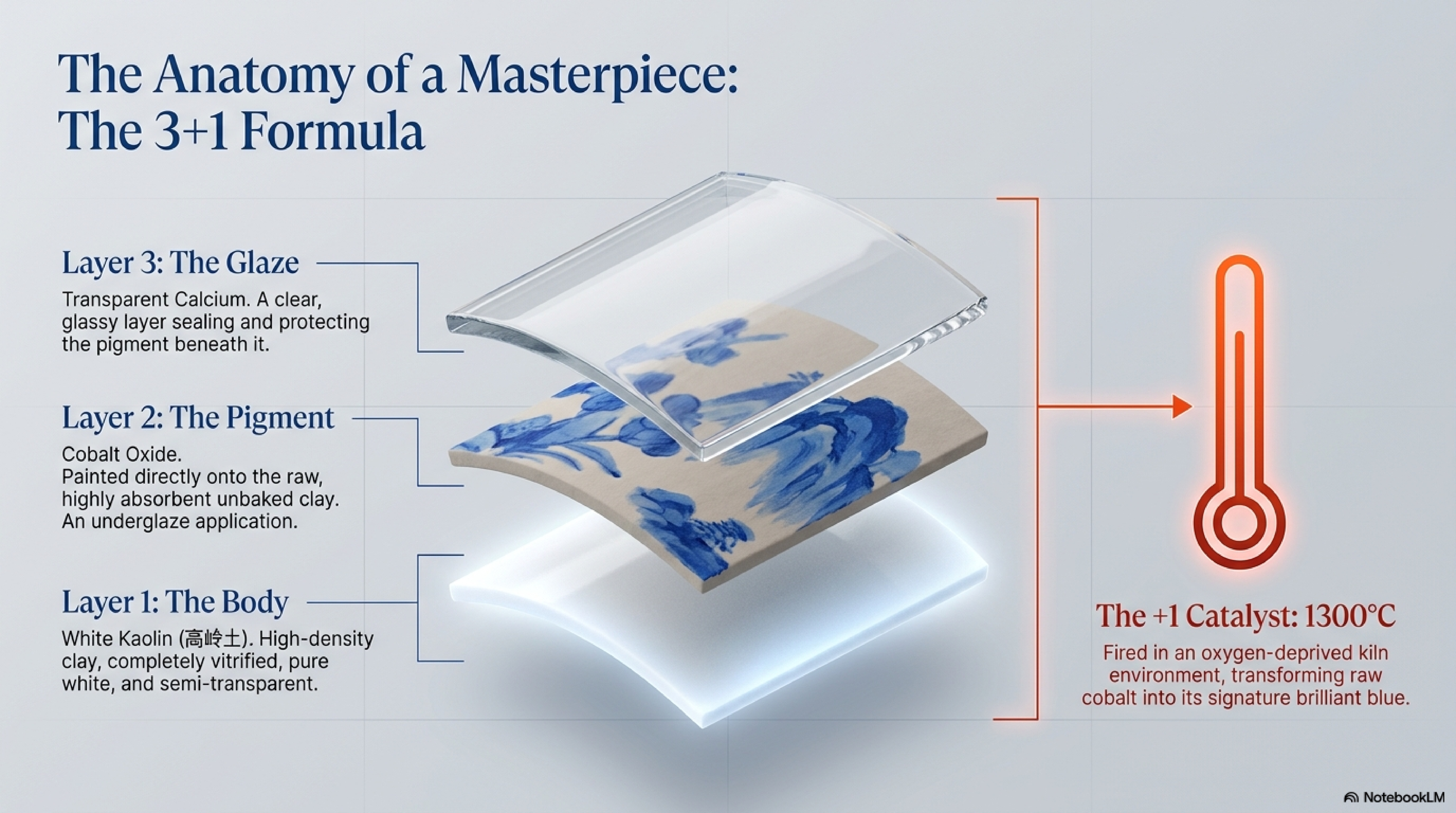

The 3+1 formula. Three raw material requirements: (1) A pure white, semi-translucent fully vitrified porcelain body — no stoneware, no grey clay. (2) A cobalt-based underglaze pigment applied directly to the unfired body before glazing. (3) A transparent high-fire glaze applied over the painted surface. Plus one firing requirement: 1300°C+ in a reduction atmosphere (oxygen-depleted kiln environment) — the condition that suppresses iron impurities co-present in the cobalt mineral from firing to red-brown iron oxides, allowing the cobalt blue to dominate the finished colour.

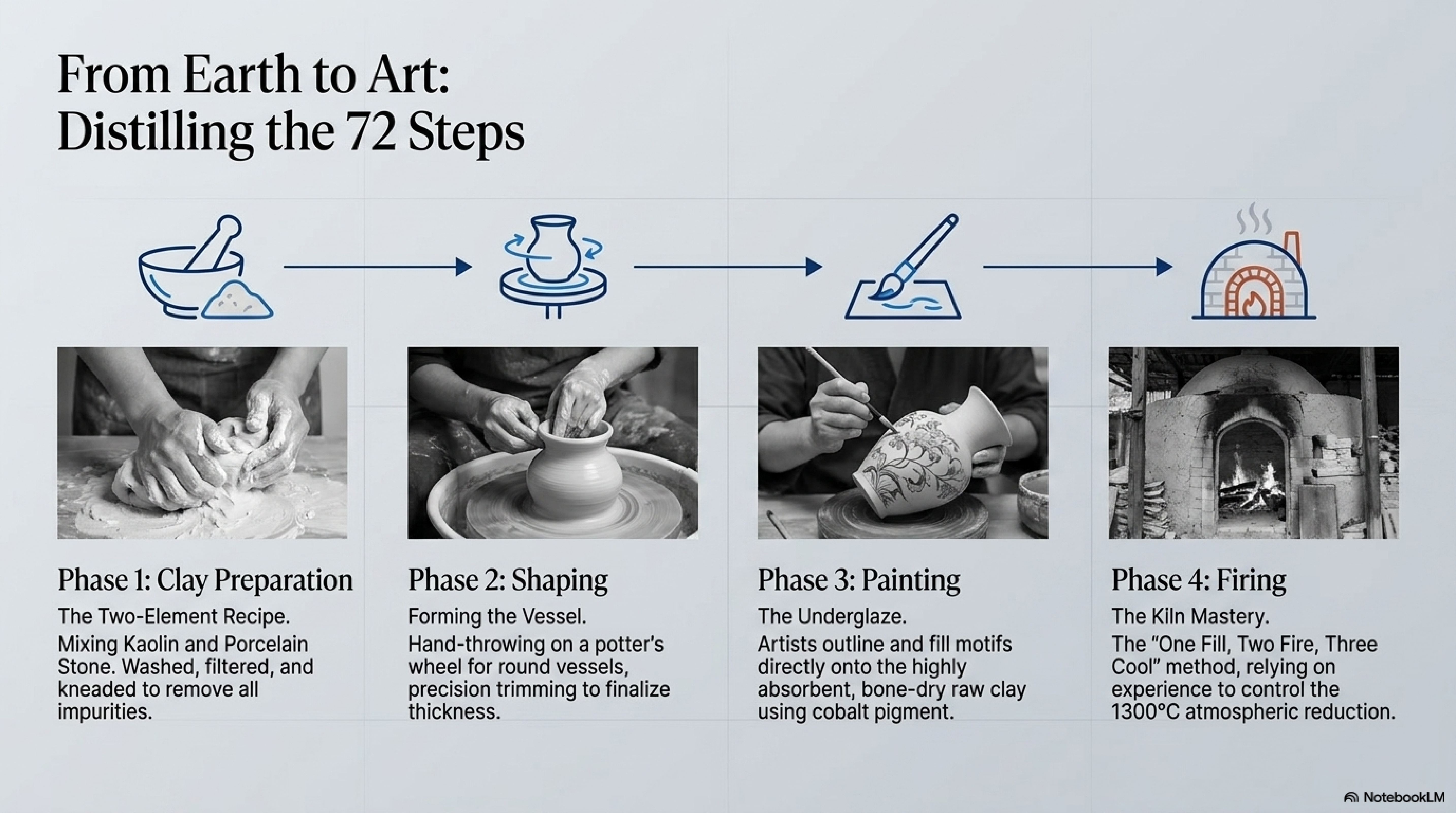

The 72 steps of porcelain: a four-phase process. Phase 1: Raw material preparation — washing, levigation, and mixing of porcelain stone and kaolin into a plastic body. Phase 2: Forming and shaping — wheel-throwing, moulding, or hand-building; joining sections at the leather-hard stage for large vessels. Phase 3: Decoration and glazing — underglaze cobalt painting on the dry unfired body, then glaze application by dipping, pouring, or brushing. Phase 4: Firing — stacking in saggers (匣钵) for loading the kiln, 1300°C+ reduction firing over 24+ hours, controlled cooling. Song Yingxing's 1637 encyclopaedia 天工开物 documented these 72 stages — the number became canonical shorthand for the complexity separating Jingdezhen porcelain from all imitators.

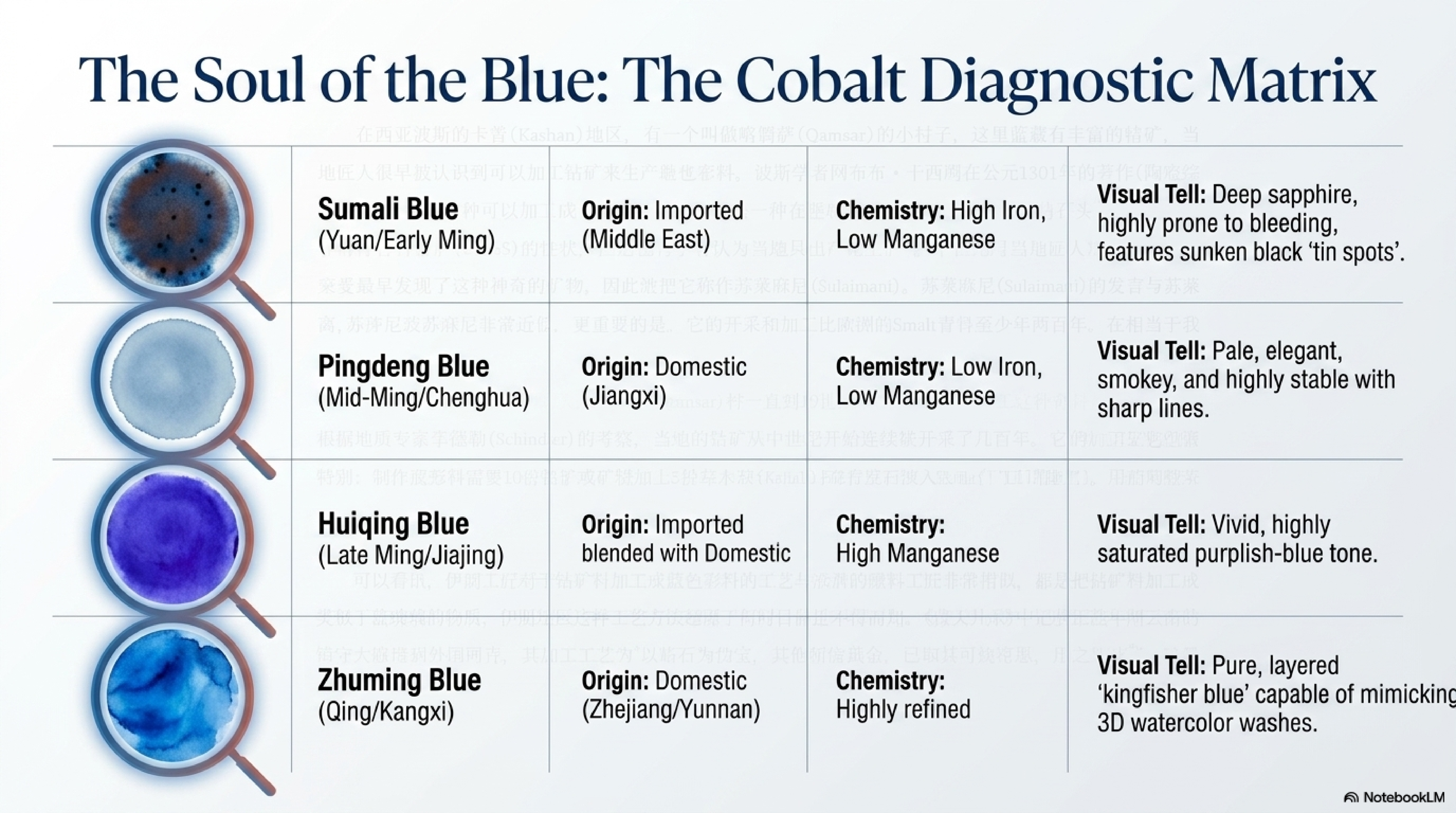

The four canonical cobalt types. 苏麻离青 (Yuan–Ming Yongle/Xuande): high iron, low manganese. Colour: deep, saturated, with naturally sunken black iron-rust spots (锡斑). 平等青 (Ming Chenghua–Hongzhi): low iron, low manganese. Colour: pale, even, cloud-like — the most refined and understated tone. 回青 (Ming Jiajing–Wanli): vivid, blue-purple intensity. 浙料/珠明料 (Ming late–Qing Kangxi): clear, bright, multi-tonal gradient possible.

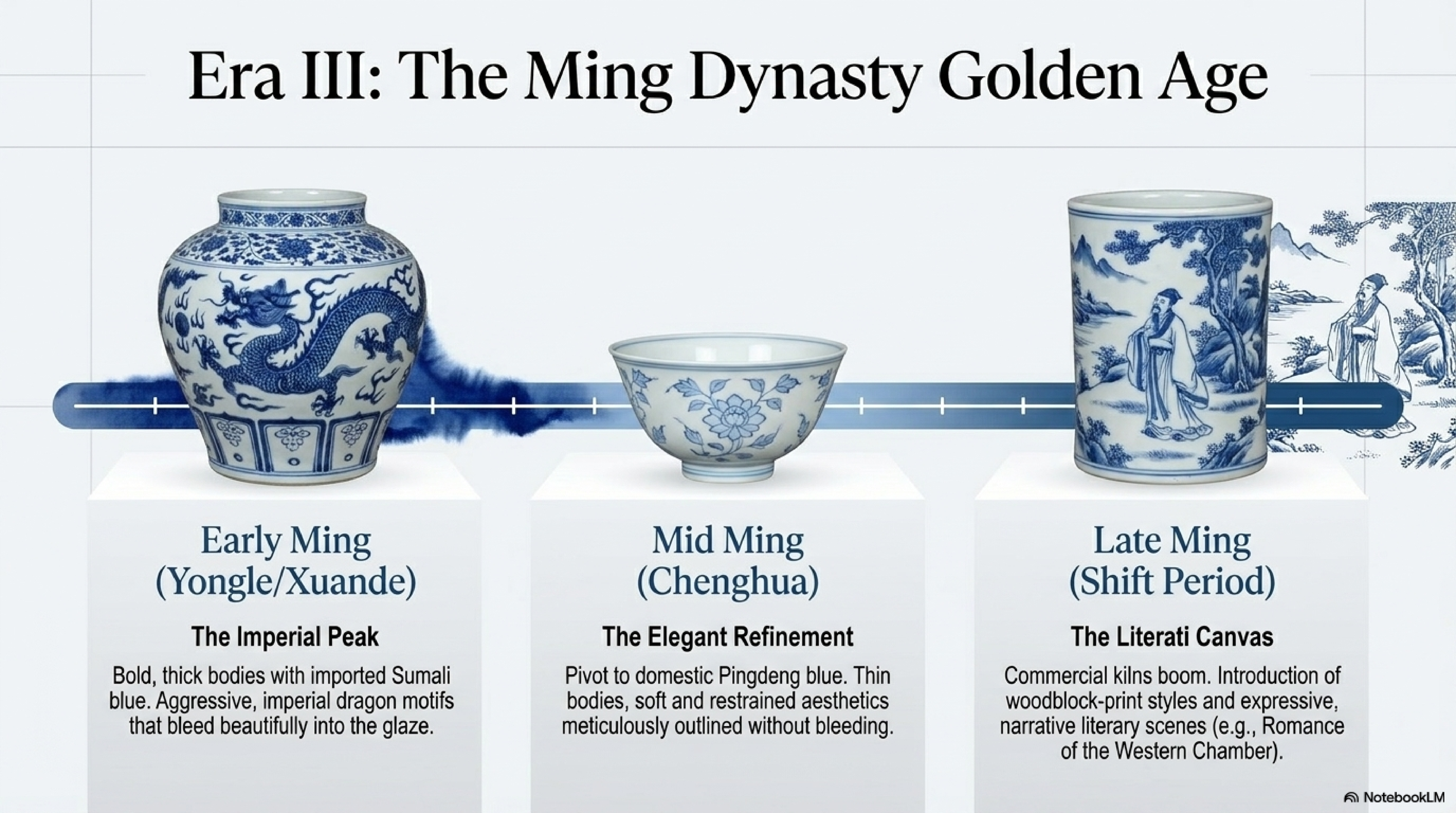

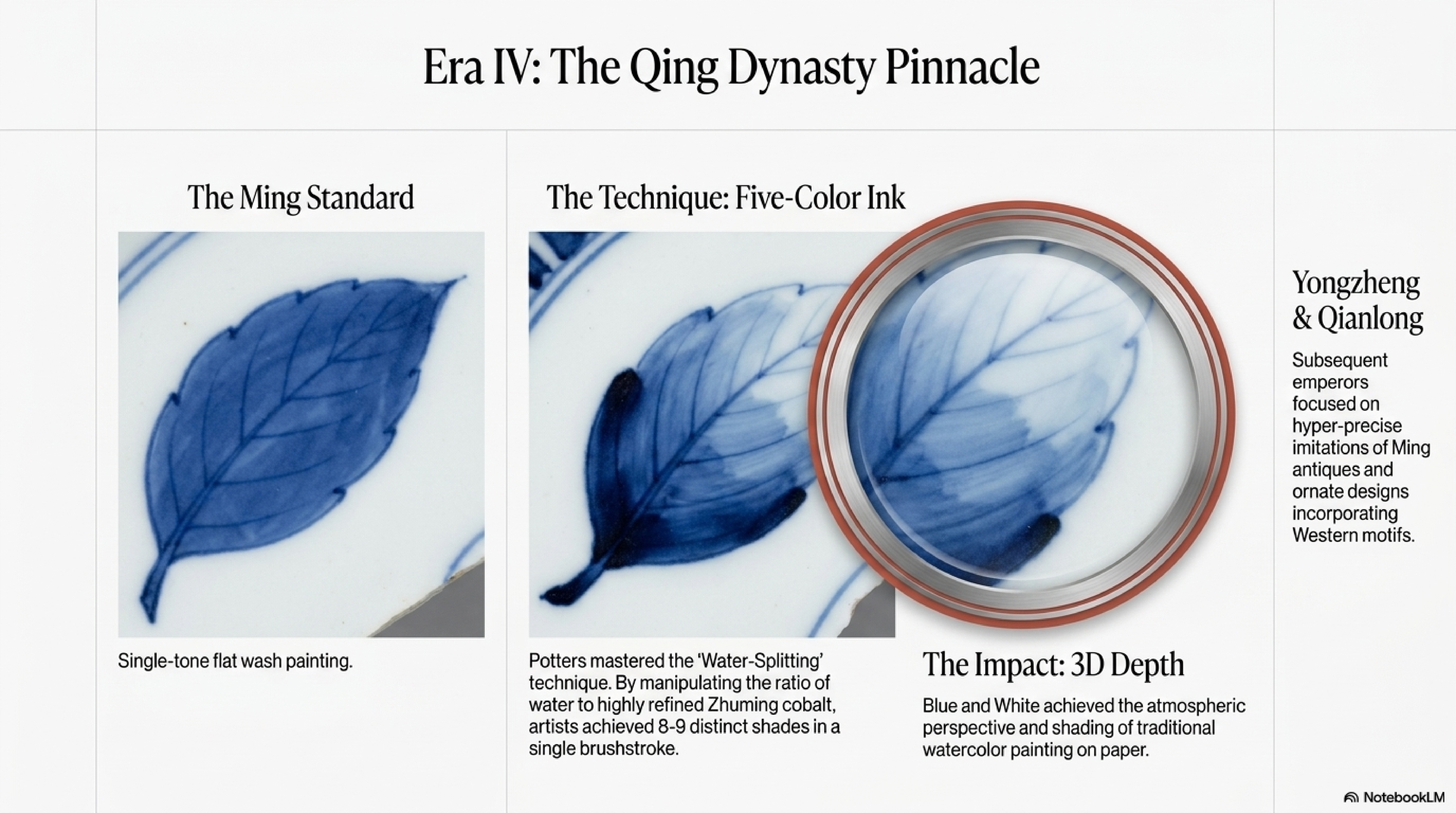

Dynasty comparison. Left to right: Yuan (deep, spontaneous 苏麻离青, bold figurative scenes), Xuande (refined 苏麻离青, controlled draughtsmanship), Chenghua (pale 平等青, delicate small-scale), Jiajing (vivid 回青, dense crowded decoration), Wanli (blue-purple 回青, export-oriented open compositions), Kangxi (brilliant 浙料, five-tonal gradients, landscape scenes). The visual shift across these six is greater than between any other comparable sequence in world ceramics.

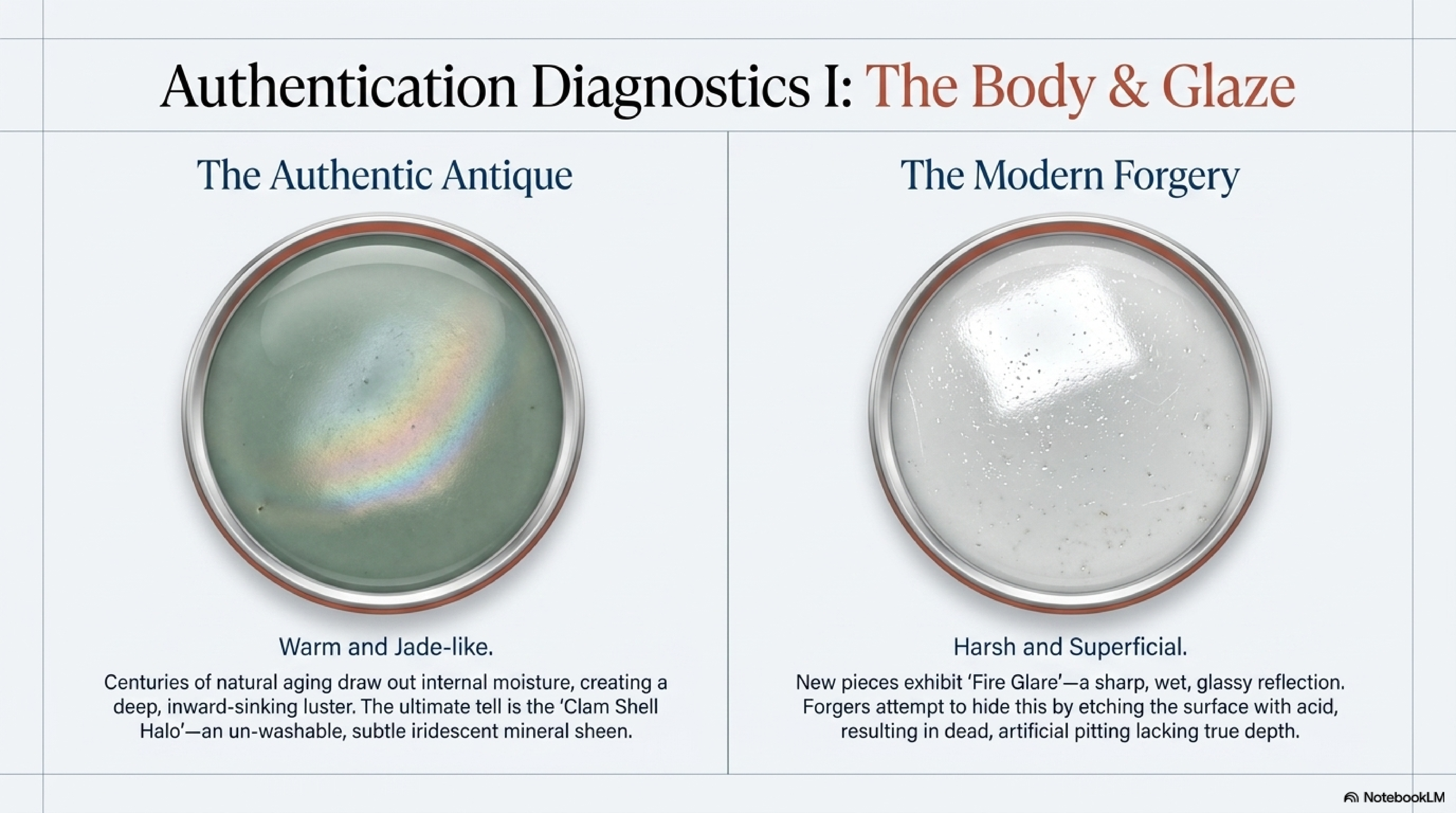

The glaze surface test. Authentic old blue and white: glaze surface is warm, jade-like, with a soft internal luminosity — described as "moist" (温润如玉). After centuries, the outer glaze surface develops 蛤蜊光 (clam-shell iridescence) — a rainbow-like shimmer caused by mineral infiltration of micro-surface pores, which cannot be washed off. Modern forgeries exhibit either "fire flash" (火刺光) — a harsh, over-bright surface from rapid modern firing — or an artificially deadened matt surface from chemical acid-washing that mimics age.

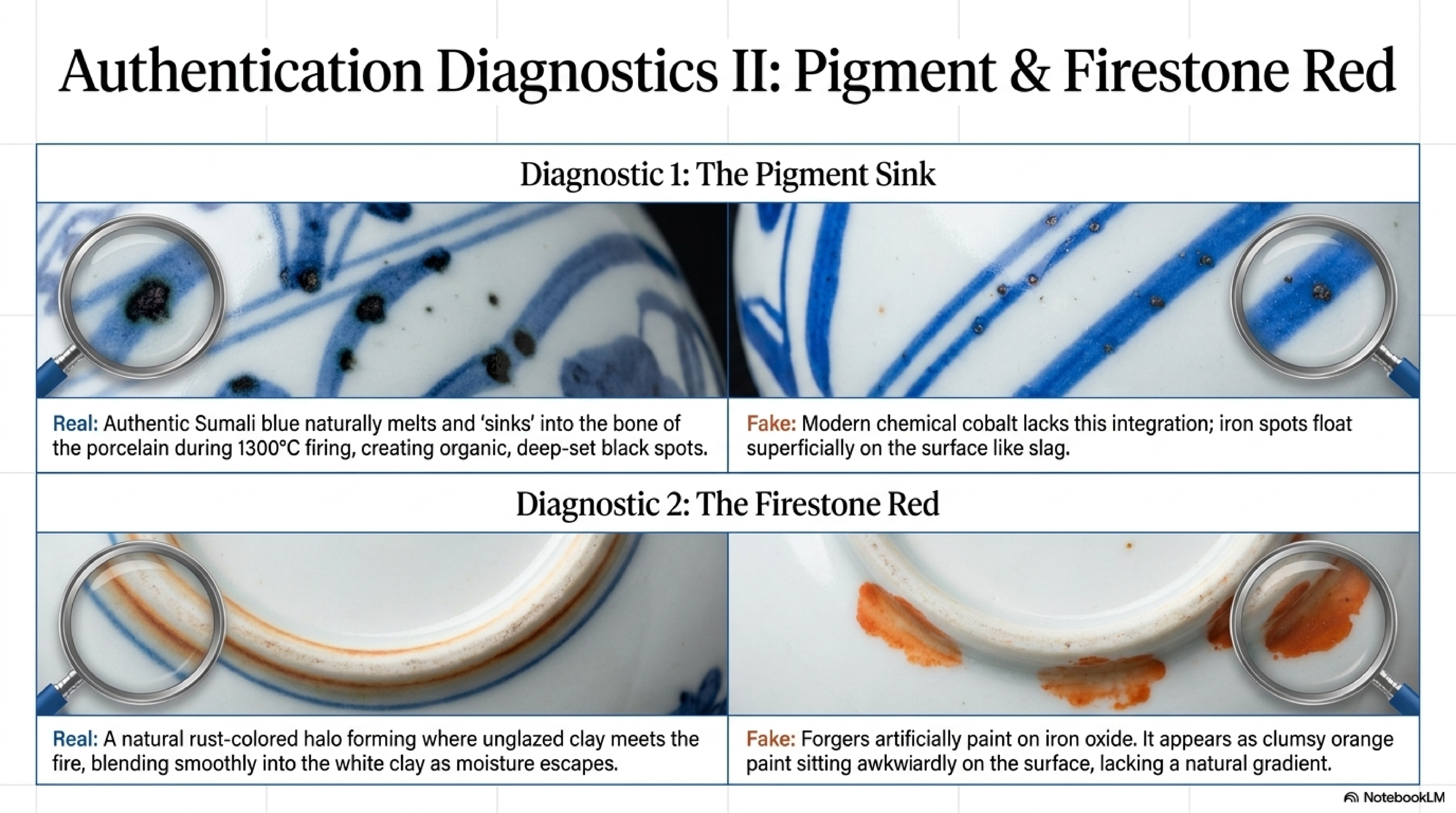

Pigment sink and firestone red: two age markers. Pigment sink (锡斑沉陷): in authentic Yuan–Ming Sumali-cobalt pieces, the high-iron pigment physically sinks into the body during firing, creating areas where the glaze surface is slightly concave over the most saturated brushstrokes — a tactile depression you can feel. This physical integration cannot be achieved by surface painting after firing. Firestone red (火石红): an orange-red iron oxidation ring that forms gradually at the base of the foot rim from natural moisture cycling over centuries. On genuine pieces it fades inward naturally; on fakes it is painted uniformly to the edge.

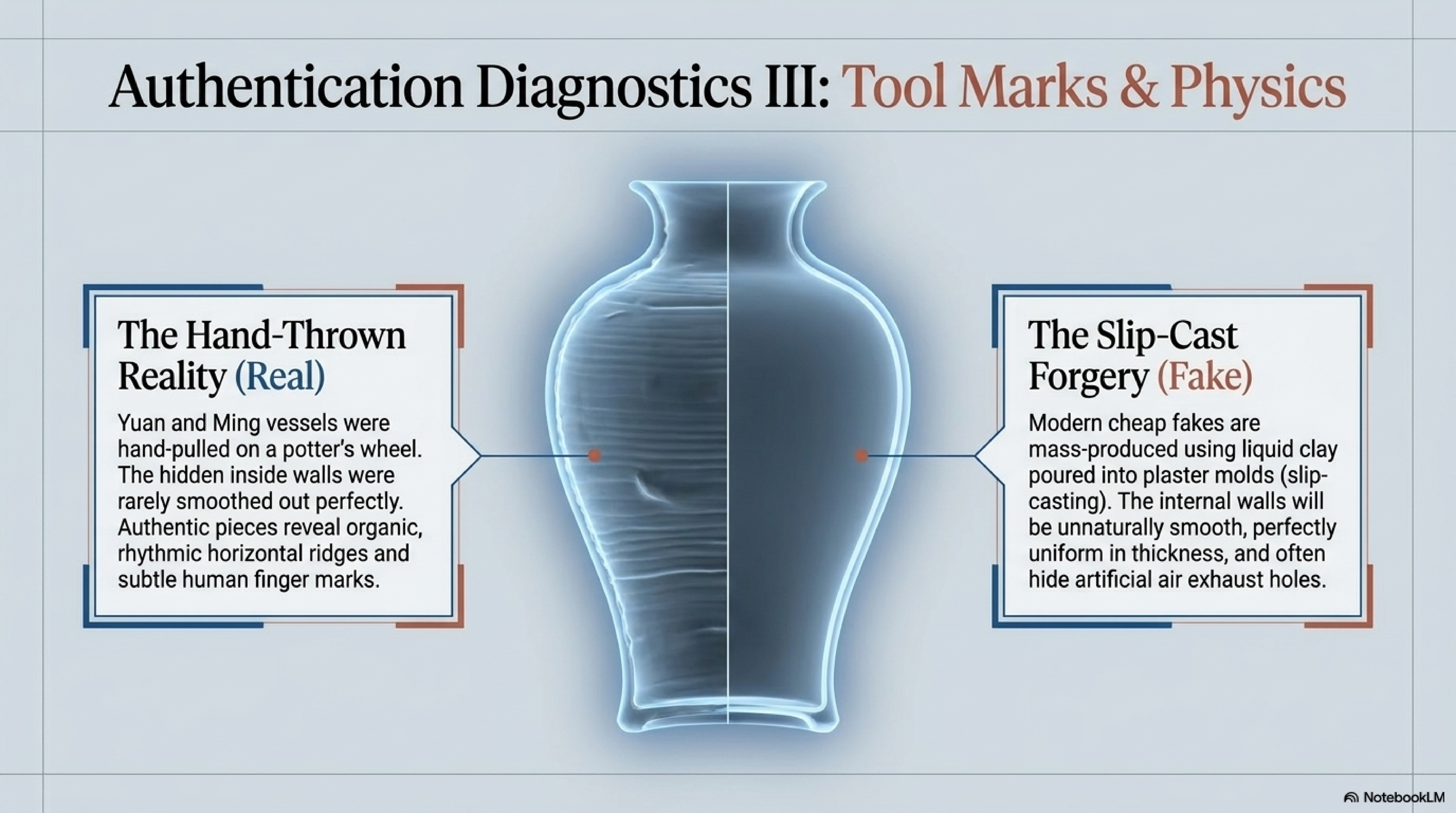

Tool marks and construction physics: hand-thrown versus slip-cast. Hand-thrown vessels (pre-modern): the potter's hand pressure creates subtle spiral tool marks on the interior — each revolution of the wheel leaves a trace. Large hand-thrown pieces show a joining seam (接痕) at the widest circumference — a faint raised line where sections were luted together at the leather-hard stage. Slip-cast reproduction: the interior is uniformly smooth, with no spiral marks and no joining seam. Mould-parting lines run vertically rather than horizontally. One test: hold a large piece to a strong light and look through the wall — hand-thrown walls show slight thickness variation; uniform wall thickness is a reproduction indicator.

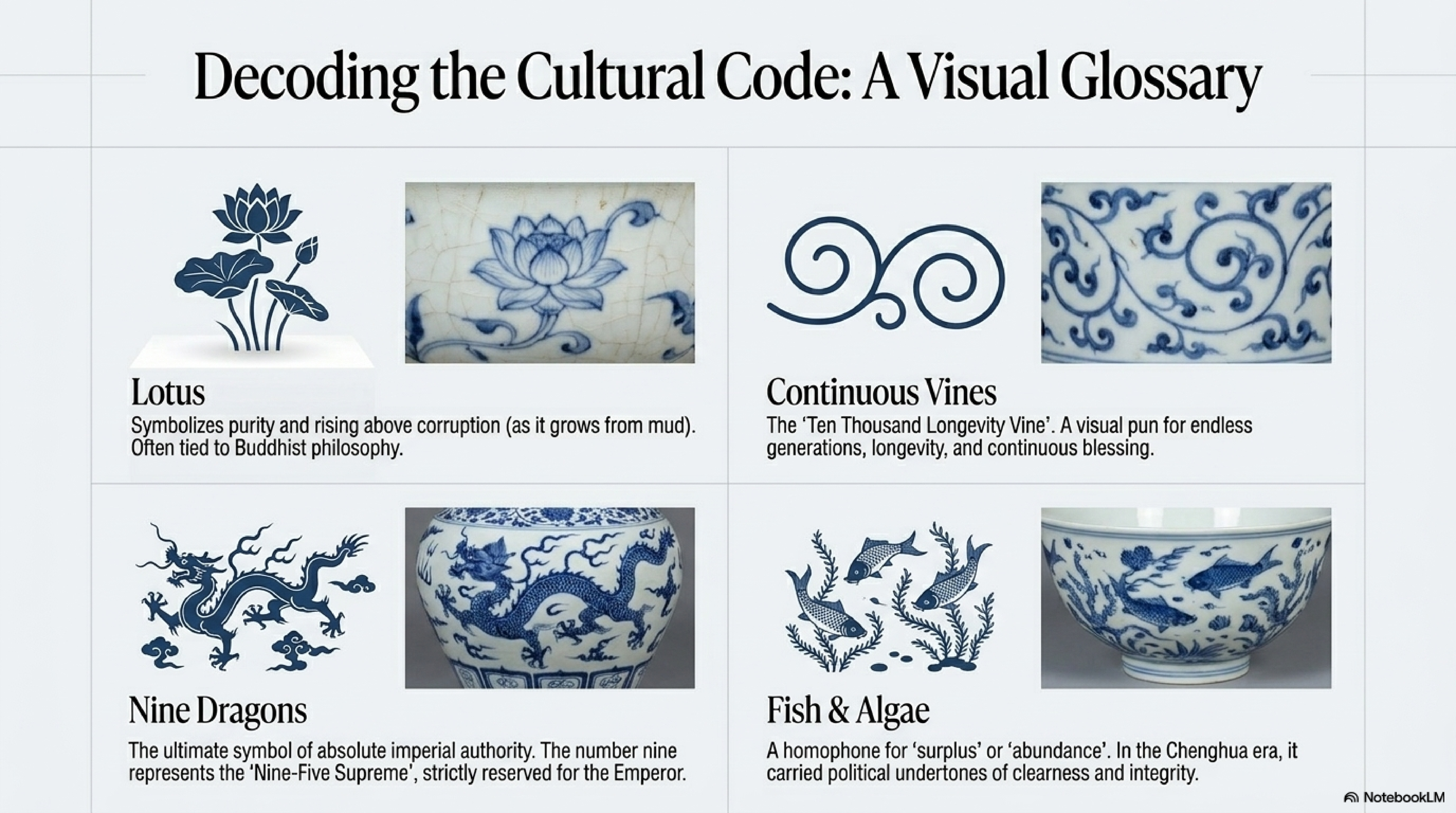

The blue and white motif vocabulary. Four canonical motif families define the tradition's visual language. Lotus scrolls (缠枝莲纹): the most ubiquitous — continuous interlocking stems with lotus heads, symbolising purity and endless abundance. Peony scrolls (缠枝牡丹): imperial wealth and honour; prominent in Xuande and Jiajing productions. Dragon and phoenix (龙凤纹): strictly regulated — five-claw dragon (五爪龙) reserved for imperial production; four-claw versions for court officials; three-claw for commoners. Fish and water (鱼藻纹): wealth and literary success (鱼 = 余, surplus). Each motif carries a fixed symbolic charge; its correct identification is an essential step in dating and contextualising any piece.

The export tradition: Kraak porcelain (克拉克瓷). From the late Ming, European trading companies commissioned blue and white to European decorative specifications — heraldic devices, geometric border panels, and Western figure scenes rendered by Chinese painters working from prints they had never seen in context. These pieces represent the earliest sustained cross-cultural design commission in ceramic history, and the beginning of the "China trade" aesthetic that would define European decorative arts through the 18th century.

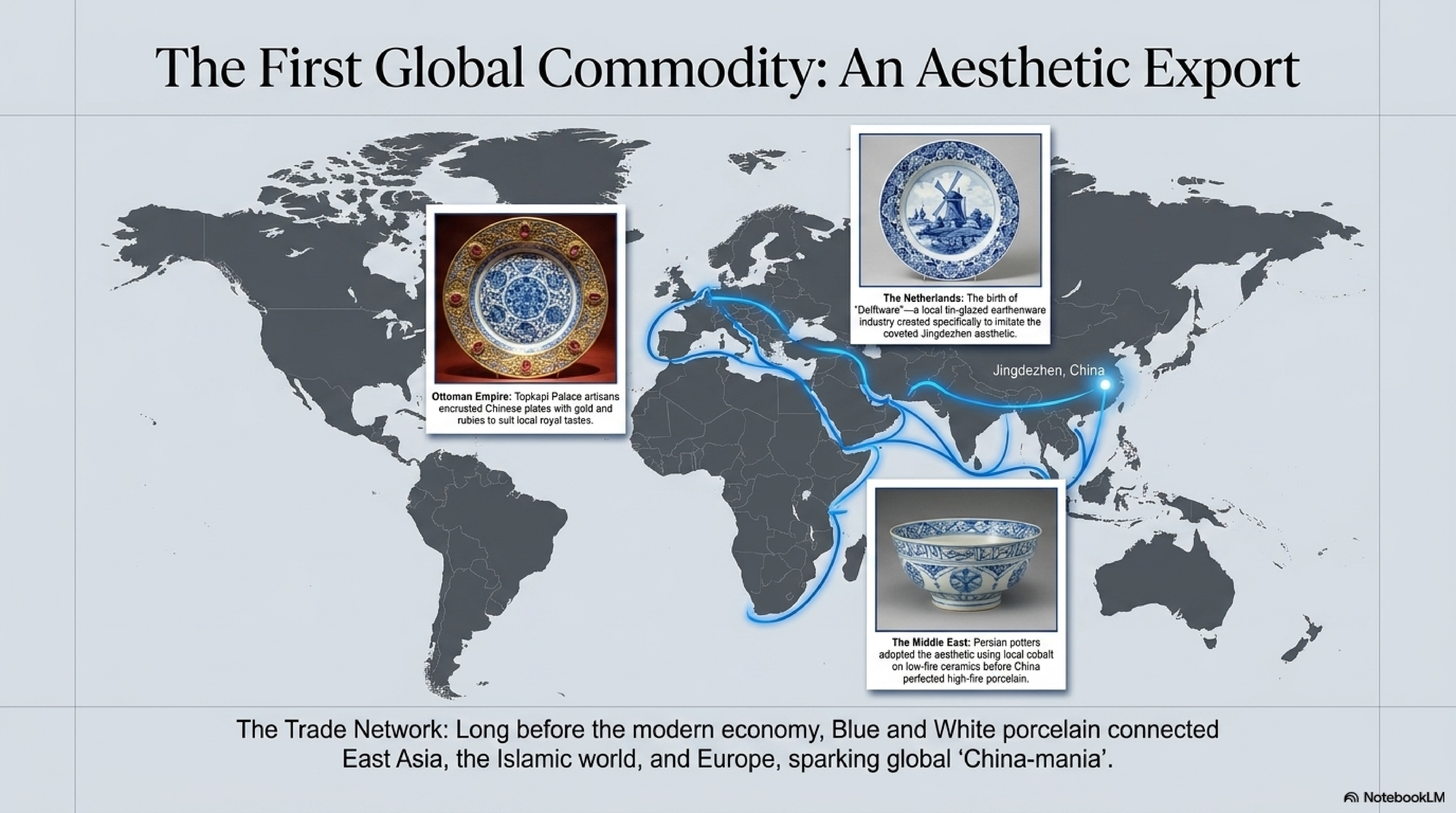

The global imitation network. Every major European and Japanese blue and white tradition derives directly from Chinese prototypes. Delft (Netherlands): Dutch East India Company imports sparked a domestic imitation industry by 1600. Imari (Japan): Arita kilns began producing blue and white from the 1610s–1640s, initially for domestic use. As political instability in the Ming disrupted Chinese exports in the 1640s–1650s, European traders turned to Arita to fill the gap — ironically selling Japanese-made "Chinese" blue and white back to European buyers. Talavera (Spain / Mexico): Spanish colonial workshops adapted the tradition for local taste, creating a distinct regional vocabulary still in production today.
